As an official distribution partner of Morningstar products across the globe, we are proud to offer solar power equipment from this world-leading supplier. Innovative design from years of dedicated research and superior build quality enable these top-of-the-range products to achieve consistently high performance standards.

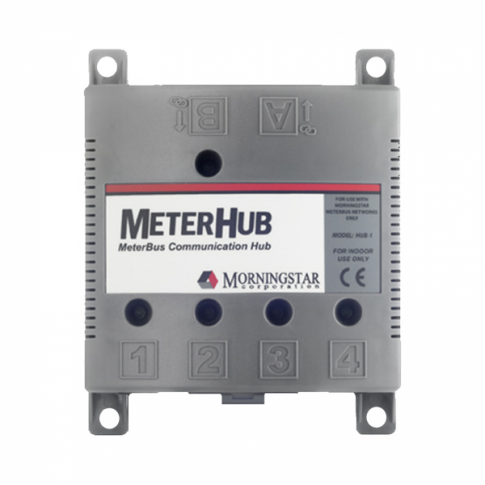

This high quality Morningstar MeterHub intelligently links multiple Morningstar controllers (up to 4 per hub) to enable communication between them. This is essential when more than one solar charge controller is connected to the same battery bank, such as in large solar systems where the capabilities of a single solar charge controller are not enough.

Linking multiple solar charge controllers through this MeterHub allows them to share a single TriStar TS-RM-2 remote meter (available to purchase separately). The remote meter can then display either single data for each controller, or aggregate data for the entire system. It can show various charging parameters such as battery voltages, charge priority, state of charge of batteries etc and serves as a quick point of reference for your solar power system.

This product also electrically isolates each solar charge controller, thereby preventing any damage to the network in the case of any grounding problems.

The MeterHub is compatible with any Morningstar TriStar, TriStar MPPT, SunSaver MPPT and Prostar (Gen 3) controllers, including the following:

• TriStar 45A
• TriStar 60A
• TriStar MPPT 30A
• TriStar MPPT 45A
• TriStar MPPT 60A
• TriStar MPPT 60A 600V
• TriStar 60A MPPT 600V (with DC transfer switch)

A maximum of two remote meters may be connected to each MeterHub. A total of four MeterHubs may be linked together in one network.

This product also comes with 5 x 1m RJ-11 cables for connecting up to four solar charge controllers and one remote meter.

Click on the Details and Specifications tab for more information about this product.
