This high-efficiency, waterproof 200W solar charging kit is perfect for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications. This panel is ideal for flat or curved roofs, such as on boats, caravans, motorhomes, RVs etc as it can easily fit to the shape of the roof when mounted.

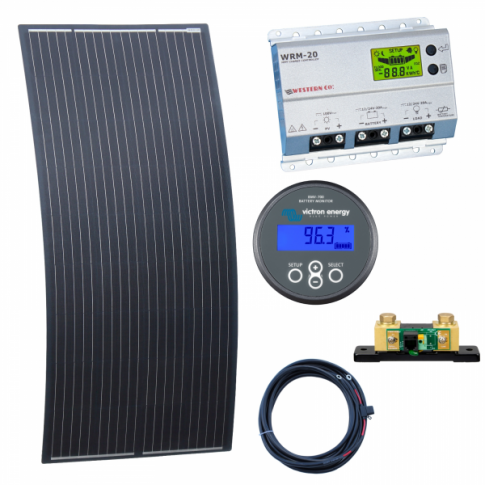

The solar kit includes:

- 200W black semi-flexible fibreglass solar panel with a rear junction box

- 20A high efficiency MPPT solar charge controller with inbuilt LCD display

- Victron 500A battery monitor BMV-700

- 5m of 6.0mm² dual-core battery cable fitted with a fuse holder, 20A fuse and 8mm ring terminals

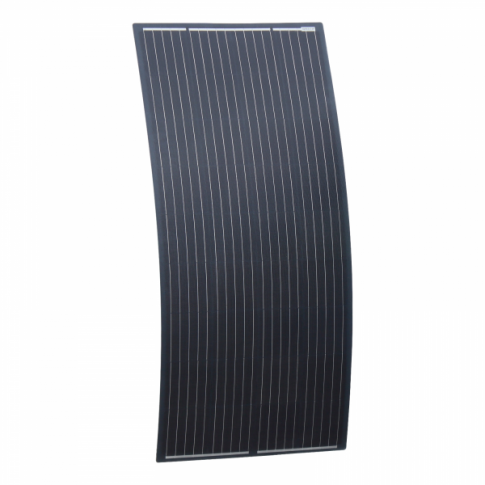

200W semi-flexible solar panel with a rear junction box:

This robust 200W semi-flexible solar panel features a glassfibre reinforced plastic construction with a strong ETFE coating, offering exceptional durability, resistance to cracking, and a longer lifespan compared to standard panels. Its textured, anti-reflective surface improves light absorption, enhancing performance in low light or cloudy conditions, while the lightweight (3.65kg), ultra-thin (2mm) design and flexibility make it perfect for curved surfaces, vehicles, and marine environments. With a rear-mounted junction box for a smooth, professional finish, a 3m dual-core cable for easy wiring, and discreet black backing, this panel combines functionality, reliability, and aesthetics for diverse applications.

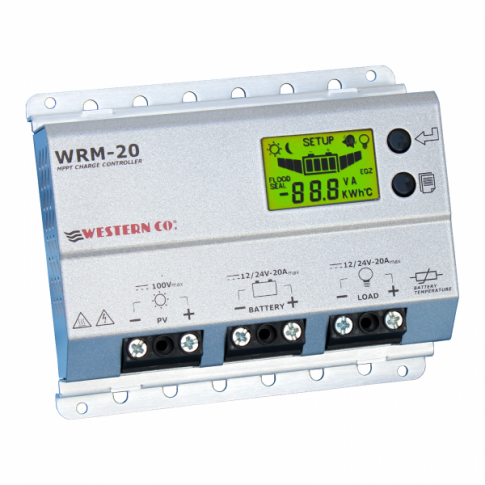

High efficiency 20A 12V/24V MPPT solar charge controller:

This advanced 20A 12V/24V MPPT solar charge controller, designed and manufactured in Italy to high European quality standards, features cutting-edge Maximum Power Point Tracking technology to optimize solar array performance in all weather conditions, ensuring maximum energy yield. With a wide solar input range, compatibility with various battery types (including lithium), and programmable load terminals, it offers versatile functionality, including intelligent day/night operation and customizable timers. Equipped with a backlit LCD display for real-time system monitoring and a built-in temperature sensor for battery protection, it also includes comprehensive safety features such as overcharging, deep discharge, and reverse polarity protection.

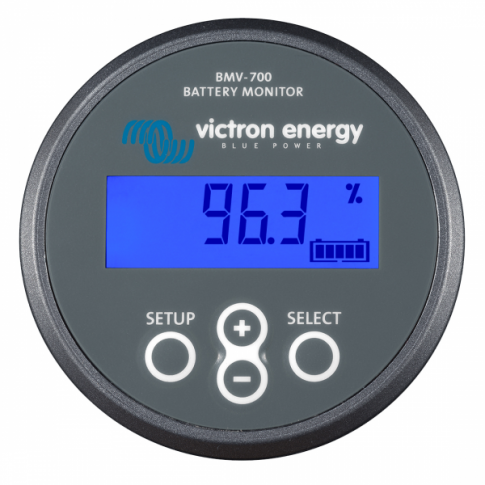

Victron 500A battery monitor BMV-700:

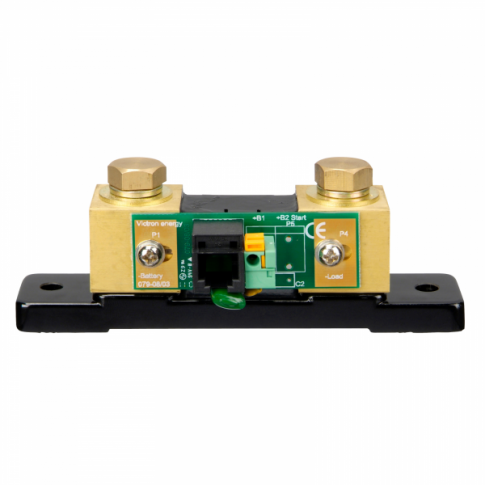

The Victron 500A BMV series battery monitor uses a high-precision shunt to measure key battery parameters, including voltage, charge/discharge current, state of charge, and time-to-go, with data conveniently displayed on the LCD monitor. It features customizable settings such as programmable alarms for voltage or state of charge thresholds, adjustable backlighting, and compatibility with larger shunts up to 9999A for diverse applications. Advanced communication options, including integration with VE Direct Bluetooth Dongle, or the VE Direct USB cable (both sold separately), the user can gain access to the VictronConnect App, which can provide real-time data, remote monitoring, and extensive programming capabilities for enhanced battery system management.

Additional items:

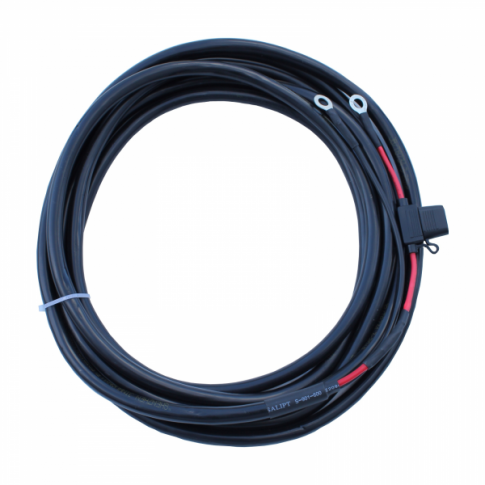

This kit also includes a heavy duty 5m 6.0mm² dual-core battery cable fitted with a fuse holder, 20A fuse and 8mm ring terminals for use between the solar charge controller and your chosen battery.

Click on the Details and Specifications tab for more information.
