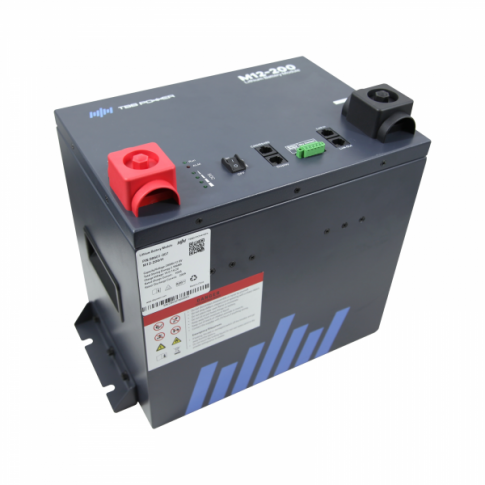

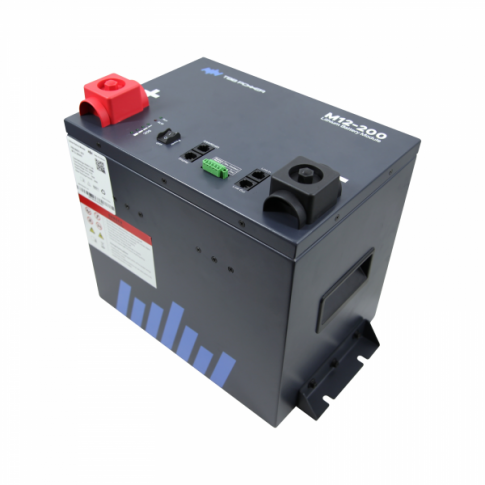

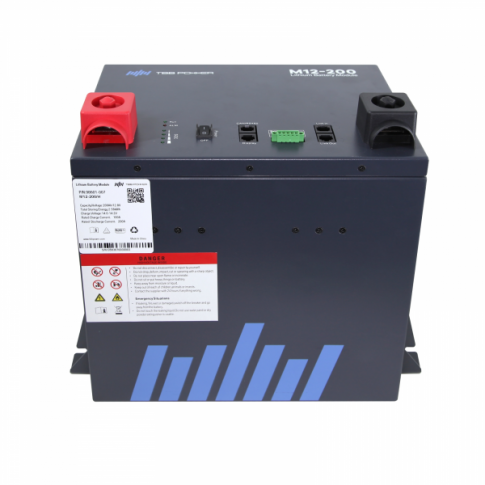

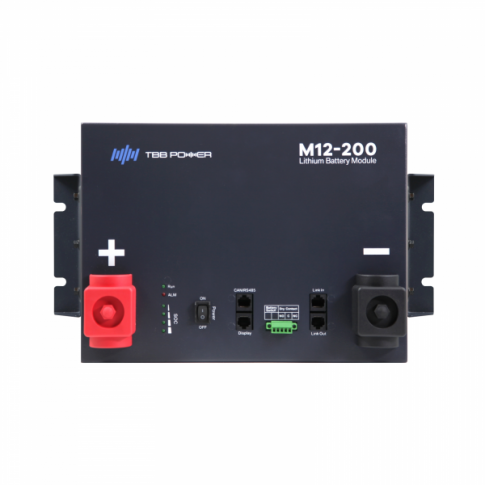

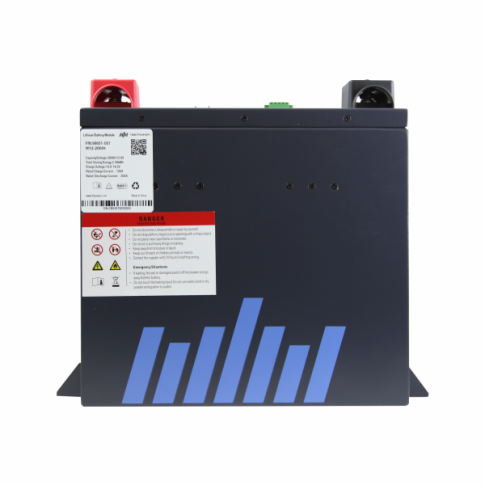

What is the TBB-M12200?

The TBB-M12200 is a high-performance 200Ah 12V Lithium Iron Phosphate (LiFePO_âã) battery, designed by TBB Mobile for safe, efficient, and long-lasting energy storage. Featuring a built-in 300A BMS, low-temperature heating function, parallel expandability, and advanced control options, it’s an ideal solution for off-grid power, marine applications, and vehicle energy systems.

With its intelligent Battery Management System (BMS), the TBB-M12200 actively monitors, protects, and optimises battery performance, ensuring reliable operation and an extended service life.

Key Benefits of the TBB-M12200

• Long Cycle Life: Provides up to 3,000 cycles at 25°C, 0.5C charge/discharge rate, vastly outlasting traditional lead-acid batteries.
• High-Performance BMS: Offers full protection from:
  • Overcharging & over-discharging
  • Over-current & short circuits
  • High & low temperature extremes
  • Cell voltage balancing & cycle life optimisation
• High Discharge Capability: Supports up to 300A discharge for high-power loads.
• Parallel Expandability: Connect up to 8 units in parallel for large-scale energy storage.
• Automatic Wake-Up Function: In shutdown mode, the battery auto-activates when an external charging voltage >14V is applied, allowing charging without discharging.
• Optional TBB-MCK Display Panel: Enables system control and live monitoring of battery voltage, current, SOC, and system status.
• Low Power Consumption:
  • <50mA in standby mode when powered on
  • <0.1mA ultra-low standby draw when powered off
• Dry Contact Power-Off Function: The integrated dry contact port allows the battery to be completely powered down, minimising idle energy use and ideal for long-term storage or emergency power isolation.
• Bluetooth Monitoring (Optional): Compatible with the TBB-DTU Bluetooth module, enabling wireless monitoring of key battery metrics such as SOC, voltage, current, and alarms through the TBB Battery mobile app (Google Play or Apple App store).
• Wide Operating Temperature: Reliable performance from -30°C to +60°C.
• Integrated Low-Temperature Heating: Automatically warms the battery from -20°C to +5°C (approx. 90 minutes) using external power, ensuring safe operation in cold environments.
• Compact & Lightweight: High energy density reduces weight and saves valuable installation space compared to bulky lead-acid units.

Advanced Protection Features

The TBB-M12200 integrates robust multi-layer safety systems for maximum reliability:

• Short Circuit Protection
• Over-Current Protection
• Battery High/Low Voltage Protection
• Individual Cell High/Low Voltage Protection
• Charge/Discharge Temperature Protection
• BMS Circuit Over-Temperature Protection
• External Input Overvoltage Protection

Whether you're powering a marine vessel, off-grid cabin, or mobile workspace, the TBB-M12200 delivers superior energy storage with safety, intelligence, and flexibility built in.

For more details and technical specifications, click on the Details and Specifications tab.
